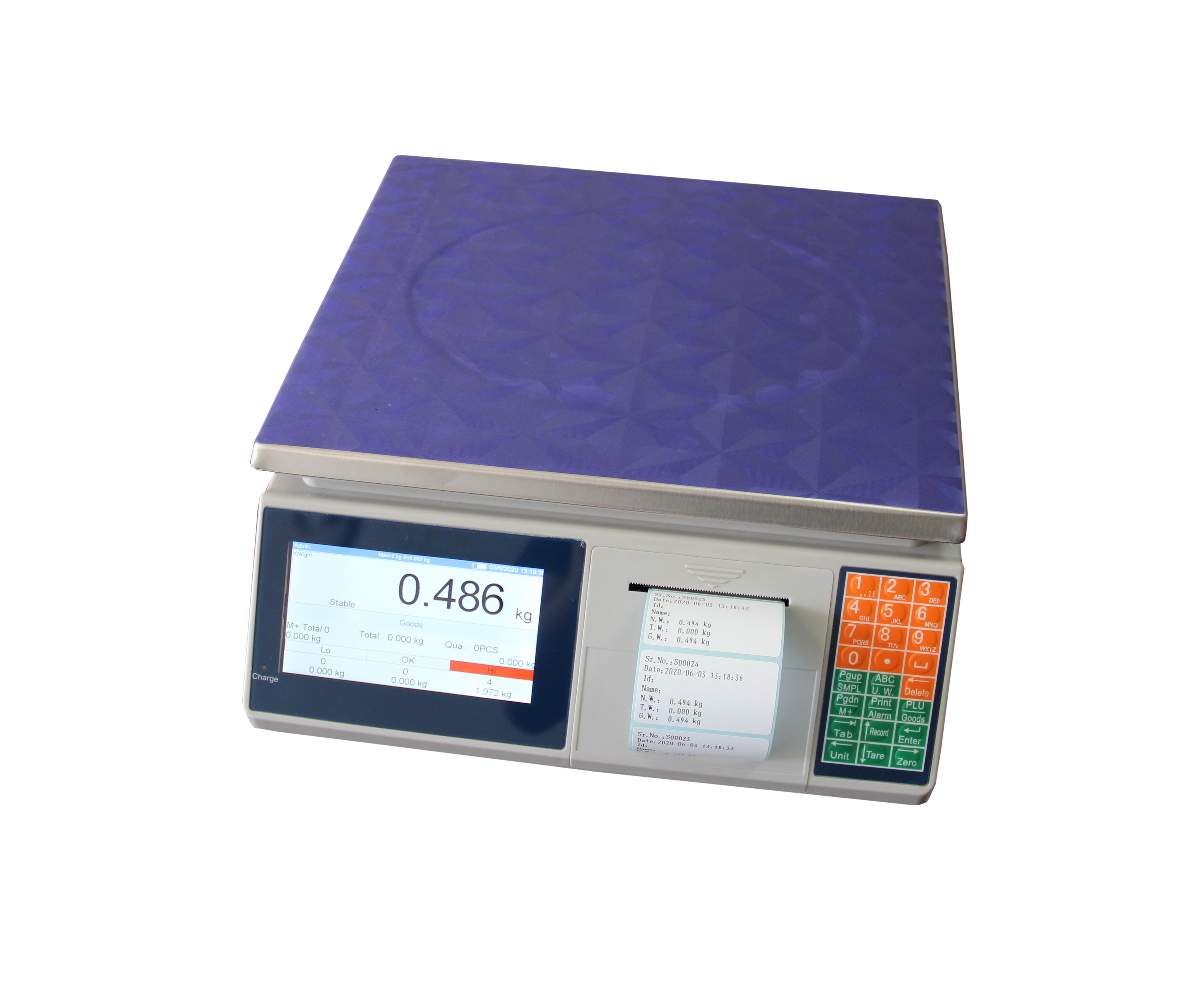

Good helper of weighing system Weighing/Counting Double interface Bulid-in printer label editor program
1.ABS plastic housing
2.5” true color TFT screen
3.Weighing stablely, accurately, fastlt
4.Date management for product, goods, vehicle, shipper, receiver, operator. Clear limits of authority.
5.Graphical operate window easy to use
6.Support to input words, even by extra keypad and mouse
7.Creat weighing data report and management report automatically
8.Can use U disk to import or export the weighing data
9.Multiple output port, can connect with printer , scan gun, alarm light,...
|
Model
|
ACS/PS-L3K
|
ACS/PS-L6K
|
ACS/PS-L15K
|
ACS/PS-L30K
|
|
Capacity
|
3kg
|
6kg
|
15kg
|
30kg
|
|
Division
|
0.1g
|
0.2g
|
0.5g
|
1g
|
|
Resolution
|
1/30000
|
1/30000
|
1/30000
|
1/30000
|
|
Repeatability+
|
0.1g
|
0.2g
|
0.5g
|
1g
|
|
Linearity +
|
0.1g
|
0.2g
|
0.5g
|
1g
|
|
Measure unit
|
can be set by soft
|
|
Response
|
2 Secs
|
2 Secs
|
2 Secs
|
2 Secs
|
|
Temperature
|
0°C to +40°C / +32°F to +104°F
|
|
Power display
|
Input 220V AC / Output 12V DC 3A Inside rechargeable battery/Lithium battery can choose
|
|
Calibration
|
Manual calibration
|
|
Calibration weight
|
500g-3000g
|
1kg-6kg
|
5kg-15kg
|
5kg-30kg
|
|
Display
|
5 inch true color TFT screen
|
|
Appearance
|
ABS, with stainless steel platform
|
|
Pan size
|
300 x 210mm
|
|
Scale size
(w x d x h)
|
335 x 315 x 115mm
|
|
Net weight
|
3.5kg
|
| Paper roll size |
Wide=50mm,Diameter=38mm |
|
